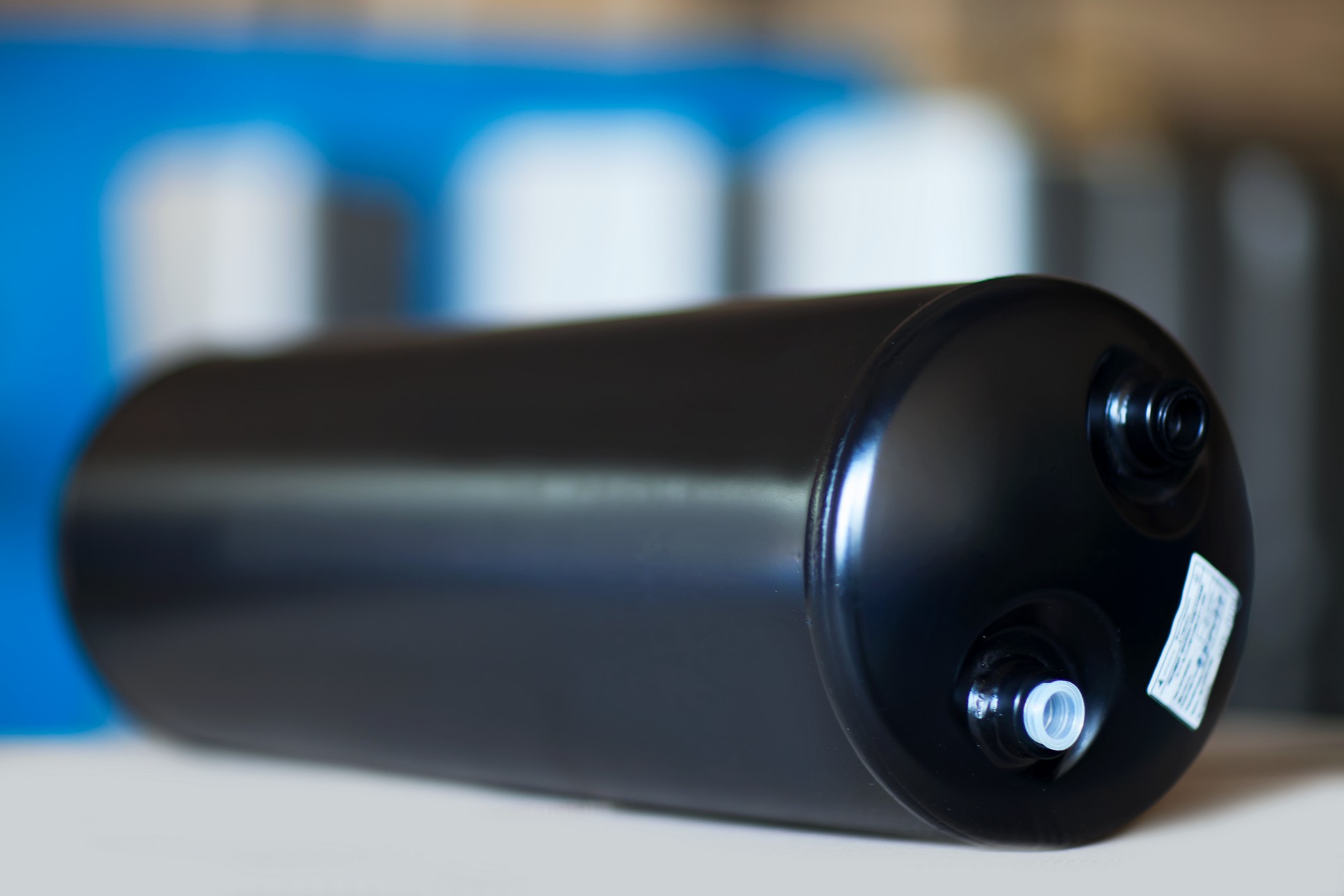

Receivers
«Spheros-Electron» JV is a manufacture of receivers –
air cylinders for vehicles, intended for energy storage of compressed air,
which is used in brake and pneumatic systems of cars, buses, tractors, trailers
and etc.
The enterprise offers receivers of the capacity from
At all stages each receiver undergoes quality inspection and a complex of required tests to ensure safety during operation.
|
Specifications and parameters |
7-l receiver |
19-l receiver |
35-l receiver |
|
Working
pressure, MPa |
1,0 |
1,0 |
1,0 |
|
Capacity,
dm³ |
7 |
19 |
35 |
|
Overall
length, mm* |
252 |
655 |
1145 |
|
Major diameter,
mm |
206 |
206 |
206 |
|
Mass, kg |
3,2 |
7,65 |
15,5 |
|
Threaded
holes* |
М22х1,5-6Н |
||
|
Quantity of
threaded holes* |
3 |
5 |
8 |
|
Conformity
with |
ТУ.У 34.3-23972496-011:2008 |
||
* Options are possible in accordance with client`s demands
